The specialty of misting air blower are large spray capacity,fast humidification and cooling down, it’s atomization cooling theory is under the action of centrifugal force rotating disc and spray particles equipment , achieving 5 micron droplet,through the fan blow out and vaporization, in the process of that, absorb the heat,bring the temperature down, improve the air relative humidity,so the water mist will not fall on the ground. And it has long range, if we use with energy saving axial flow fan, increase indoor wind rate, improve the speed of air flowing, the effect of use could be more improved.

Principle of operation:

Taking the latest direct centrifugal atomization technology, through wet mist of the spray spread to the air rapidly, the evaporation takes away the heat from the air quickly, thus reduce the environment temperature, within the range of the spraying area,could be cooler  6 ~ 8 ° C.

Functions:

Cooling, humidity, dedusting, refrigeration, sterilization, epidemic prevention, antistatic and more.

Applications:

farms, greenhouses,factories, restaurants,mushroom houses, plant ecology garden,park, scenics, streets, playground, stadium,etc. The tank can be put air freshener, deodorizer, disinfector and more to get cleaner.

New great points:

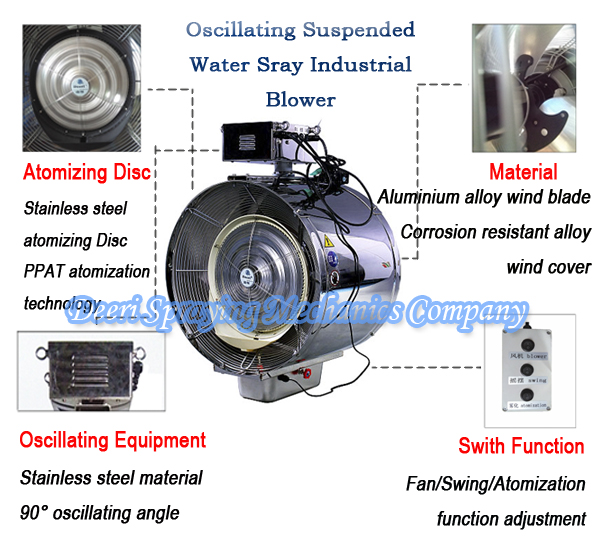

1.A full set of stainless steel ventilator, anticorrosion treatment on surface.

2.With international standard anticreeping switch, safety in use.

3.No need nozzles,and besides it’s misting, blasting air separation design.

4.The mist particle size 8 ~ 12 um.

5.Non-blocking structure design, exclusive direct atomization PPAT technology.

6.Large efficient mute alloy wind blade, noise is only 55 decibels,and others normally need 85 decibels.

7.Can be automatically adding limited water to the tank.

8.Tank capacity with water cycling is 5L.

9.The tank with automatic watering cycle,no need drainage,save more water.

10.Corrosion resistant alloy wind cover.

11.International standards for all copper motor,can be last over 8 years.

12.Oscillating equipment optional:stainless steel anticorrosion oscillate case.

13.Oscillating stepping motor, tempering gear.

14.Standard oscillate angle is 90°.

Power supply:220V/50Hz

Power: 570W/4

Electricity:2.6A

Revolving speed:1450r/Min

Airflow rate:12000M3/H

Humidify capacity:0-15L/H（adjustable）

Acreage:in 250M ²

Feature:Fast humidification,not blocking easily

Through the water control valve adjust the mist

Quality guarantee for one year according to the Chinese “Three packs of policy”.

Brand name:Deeri

Colour: As the pictures

Material: Stainless steel

Package:Wooden case

Port:Guangzhou

Payment terms: Negotiable

Place of origin:Guangzhou,China.
